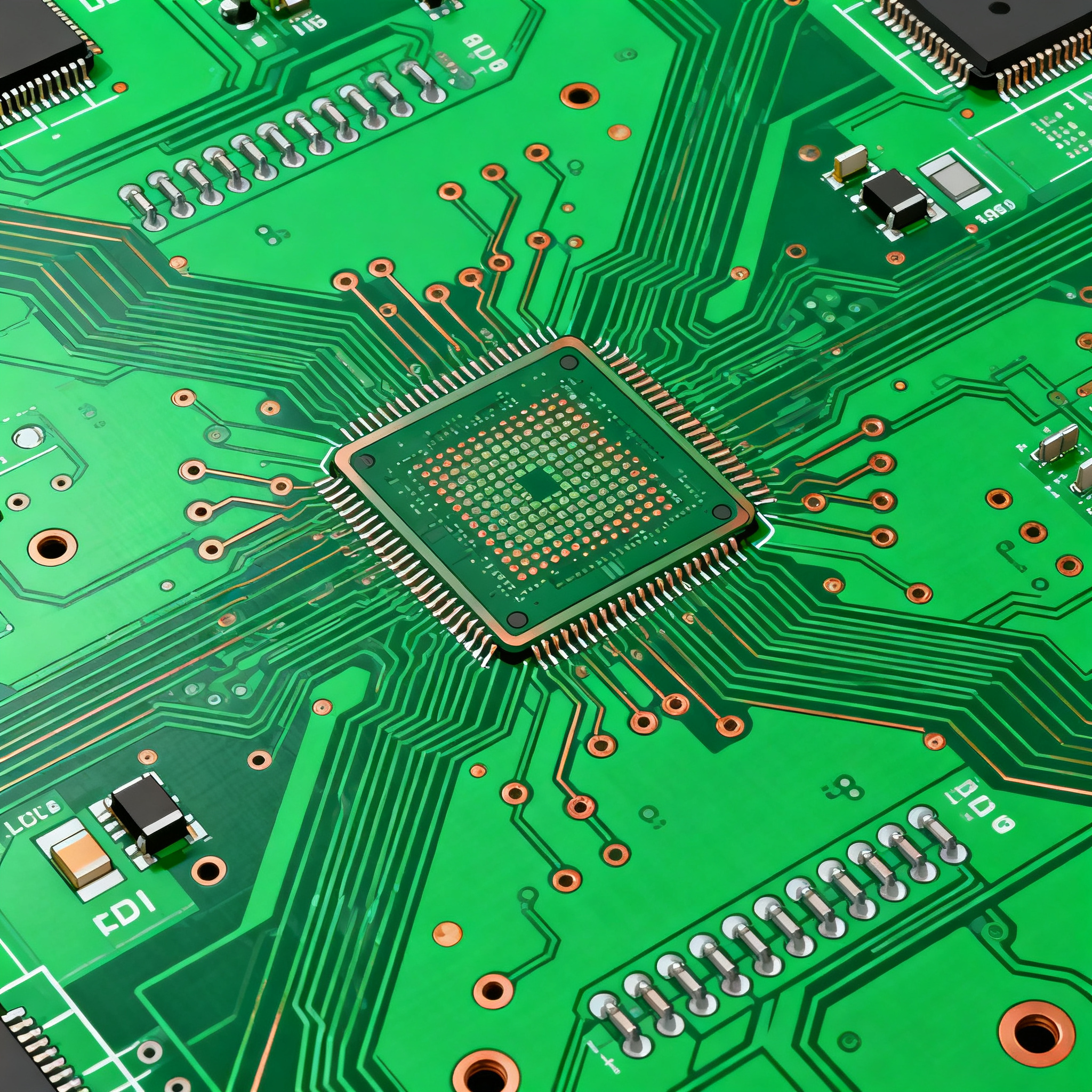

Advanced PCB Design Techniques for 6-Layer HDI Boards: 2026 Manufacturing Best Practices
Why 6‑Layer HDI Stackups Are Becoming the Go‑To for Dense Electronics in 2026 The relentless shrink of IoT endpoints, medical wearables, and sub‑6 GHz 5G front‑end modules has pushed conventional thro...
Why 6‑Layer HDI Stackups Are Becoming the Go‑To for Dense Electronics in 2026
The relentless shrink of IoT endpoints, medical wearables, and sub‑6 GHz 5G front‑end modules has pushed conventional through‑hole via boards past their sensible density limits. A 6‑layer HDI stackup sits in the sweet spot: it provides four internal routing layers and two outer signal layers, enough to fan out a dense BGA without forcing the cost and yield risk of an eight‑layer sequential‑lamination build. In 2026, designers are leaning hard on this format because it balances routing channel count, power‑delivery impedance, and fabrication complexity better than four‑layer microvia boards or eight‑layer rigid‑flex assemblies for volumes up to 50 k units per year.
Yet the shift from a legacy 6‑layer through‑board to a laser‑drilled HDI variant introduces fresh failure modes: stacked microvias that crack under thermal cycling, blind‑via aspect ratios that starve plating chemistry, and lamination‑induced warp that lifts 0201 passives during reflow. The design habits that worked with 0.3 mm drill sizes and generous annular rings do not scale to 100 µm laser vias. A solid grounding in the fundamentals outlined in IPC‑2221 is the baseline; what you layer on top—stackup symmetry, material selection, via‑fill strategy—determines whether the prototype runs at first pass or becomes a four‑spin headache.
The Anatomy of a 6‑Layer HDI Board: Stackups, Microvias, and Material Trade‑offs
Most 6‑layer HDI boards are built on a 1‑build‑up construction: a central 4‑layer core (or laminate pair) with laser‑drilled microvias connecting outer layers 1‑2 and 5‑6. Buried mechanical vias link layers 2‑5, and optional through‑vias carry nets that must traverse the entire stack. The build can be foil‑based (two prepreg sheets bonded to a finished core) or core‑based (a glass‑reinforced epoxy core with laser‑ablatable resin‑coated copper on the outer surfaces). The foil construction generally yields thinner overall thickness and lower drilling stress, but at a slightly higher material cost.
Material choice is not just about Dk and Df. A 6‑layer HDI stack for a 25 Gbps SerDes line needs a low‑loss laminate such as Panasonic Megtron 6 or Isola I‑Speed on the high‑speed layers; the outer layers can use a standard FR‑4.4 material if they only carry low‑frequency I/O. Aspect ratio limits are the first brick wall: IPC‑2221 recommends a maximum mechanical drill aspect ratio of 10:1 for a 0.2 mm drill bit in standard FR‑4, but the laser‑driven microvia limit is 1:1 depth‑to‑diameter—and many fabricators push back when you approach 0.8:1 because the copper electrolyte struggles to refresh inside the blind hole. The table below captures the envelope for a reliable production stack.
| Parameter | Typical Range for 6‑Layer HDI | Unit / Notes |
|---|---|---|
| Layer construction | 1‑2‑3‑4‑5‑6 (core + 2 build‑up foils) | Type III HDI per IPC‑2226 |
| Finished board thickness | 0.8 – 1.2 | mm (thinner under 6 mm² pushed to rigid‑flex) |
| Microvia diameter (laser) | 75 – 100 | µm; depth 60 – 80 µm typical |
| Microvia aspect ratio (depth:dia) | ≤ 1:1 (0.8:1 preferred in volume) | Ratio above 1:1 risks voiding & poor plating |
| Blind via (L1‑L2) target pad | 250 – 300 | µm (allows 75 µm annular ring) |
| Buried via (L2‑L5) drill size | 0.2 – 0.25 | mm mechanical drill |
| Trace/space on outer layers | 75/75 – 100/100 | µm; controlled impedance lanes 90 µm typical |
| Core dielectric (high‑speed layers) | Megtron 6, I‑Speed, Rogers 4350B | Dk 3.3‑3.7, Df ≤ 0.004 @ 10 GHz |
| Prepreg / RCC (outer build‑up) | FR‑4.4 or low‑flow RCC | Laser‑ablatable, Tg 150 °C min. |
| Impedance tolerance | ±10% (50 Ω single‑ended, 100 Ω diff) | Tighter than ±10% increases scrap significantly |
These numbers are not aspirational—they are the guardrails that separate a high‑yield lot from a pile of scrap. When you design a stackup, start with the via pad size. A 100 µm laser via on layer 1 needs at least a 250 µm pad to accommodate the hole and a reliable annular ring. That pad eats routing channels between BGA balls on a 0.5 mm pitch package. If your BGA demands a 0.4 mm pitch, you’re forced into via‑in‑pad with filled and capped structures, which brings the next topic into play.
Stacked vs. Staggered Microvias: Choosing the Right Via Strategy for Yield and Reliability
Once you move beyond a single microvia layer‑pair, you face the choice of stacking vias directly on top of one another or offsetting them (staggering). Both methods have their place, but picking the wrong one for your thermal‑cycle profile or copper‑fill process can trigger field returns that surface only after 2000 hours of operation. The comparison below is built from real assembly experiences and conforms to the reliability guidance embedded in IPC‑A‑610 class 2/3 acceptance criteria.
| Comparison Metric | Stacked Microvias (Via‑on‑Via) | Staggered Microvias (Offset Build) | Selection Criteria & Failure Boundary |
|---|---|---|---|
| Routing density | Highest; occupies one grid position | Lower; two adjacent positions consumed | Choose stacked when via‑in‑pad is mandatory (e.g., 0.4 mm pitch BGA) |
| Plating uniformity | Risk of “dimple” at the junction | Uniform; each via gets fresh electroplating | Dimples weaken the interface; reject if dimple depth > 10 µm |
| Thermal cycle reliability (-40 to +125 °C) | 3×–5× lower cycles to failure in tin‑lead finishes | Better; stress distributes across a larger land area | Automotive or outdoor IoT: stagger unless you perform IST testing |
| Cost adder | Requires copper filling and planarization; +12–18% per board | No special fill; cost remains near baseline | Use staggered when budget is tight and pitch > 0.5 mm |
| Via‑in‑pad compatibility | Excellent (after fill & cap planarity < 15 µm) | Can be used but occupies two pads; rarely practical | Stacked mandatory for via‑in‑pad under BGA with 0.4 mm or smaller |
The trade‑off boils down to stress concentration versus real estate. Stacked vias create a vertical column of copper that expands at a different rate than the surrounding laminate, concentrating stress at the microvia‑to‑capture‑pad interface during thermal shock. A well‑controlled copper‑filling process with elongation ≥15% can extend life, but many commodity fabricators lack the pulse‑plating equipment to fill a 75 µm laser via without voids. Mid‑tier suppliers who run a consistent copper‑dimple spec of ≤10 µm and use a resin‑plugging step before planarization can deliver stacked structures that pass 1000 thermal cycles—provided the design avoids placing them directly beneath a large QFN thermal pad where solder joint stress is highest.
Tip: If you do choose stacked vias, add a small annular relief (10–15 µm increase in capture pad diameter) on the inner layer to reduce the risk of barrel cracking. This is a low‑cost tweak that doesn’t affect routability.
DFM Pitfalls That Kill 6‑Layer HDI Yields (and How to Avoid Them)
Most 6‑layer HDI yield declines trace back to five recurring design‑side decisions. The good news is that they are entirely avoidable with a pre‑release design rule check that overlaps your CAD rule set with the fabricator’s actual tool capabilities. When you partner with a manufacturer that offers a thorough DFM review early in the layout phase, many of these issues are caught before the first prototype run. For example, the engineering team at Nova PCBA routinely catches blind‑via aspect ratio violations and solder‑mask dam mismatches during the design review call, saving customers an average of two re‑spin iterations.
The table below lists the most common fabrication defects, their root causes, and the specific design‑side corrective actions.
| Defect | Root Cause in Design | Prevention / Design Rule |
|---|---|---|
| Microvia voiding / plating skip | Depth‑to‑diameter ratio > 1:1 or insufficient laser energy specification | Keep microvia depth ≤ 80 µm, diameter ≥ 80 µm; request conformal Cu plating with 12 µm minimum wall |
| Solder mask sliver / dam failure between BGAs | Mask clearance around pads leaves < 75 µm dam width between 0.4 mm pitch balls | Implement NSMD pad definition; maintain solder‑mask dam ≥ 75 µm; use liquid photoimageable solder mask with resolution ≤ 50 µm |
| Warpage beyond 0.75% during reflow | Asymmetric copper distribution; all heavy planes on one side of the stack | Balance copper weight across the stack symmetry plane; for 6‑layer, mirror L2‑L5 and L3‑L4 copper area within 10% |
| Through‑via barrel crack after thermal cycling | Buried via drill‑to‑thickness aspect ratio > 8:1 without stress‑relief pads | Keep buried via drill ≥ 0.2 mm when board thickness 1.6 mm; add teardrop fillets on inner‑layer pads |
| Via‑in‑pad solder suck‑back (void under component) | Open, untreated blind via in a component land without fill or tenting | Specify filled & capped via (IPC‑4761 Type VII) for all via‑in‑pad locations; enforce planarity ≤ 15 µm |
Beyond these five, a less obvious killer is the interaction between the solder‑mask dam and the surface finish. On a 6‑layer HDI with 0.4 mm pitch BGA and ENEPIG finish, the electroless nickel can creep underneath a thin dam, causing a short after aging. The safest approach is to pull back the solder‑mask dam to a minimum of 100 µm between any two plated edges and to mandate a conformal mask around any via‑in‑pad cap. These details sound small, but they determine whether 98% of boards pass first-article functional test or 65% require rework.
Practical checklist to run before releasing Gerber files:
- Confirm microvia aspect ratio on every build‑up layer. Use the CAD tool’s design‑rule check with a custom query: (BlindViaDepth / BlindViaDiameter) ≤ 0.9. Adjust the stack until each ratio is satisfied.
- Check solder‑mask dam widths around all 0.4 mm and 0.5 mm pitch BGAs. In Altium, enable the “Solder Mask Sliver” rule and set a minimum bridge of 80 µm. In KiCad, generate a 3D rendering and visually inspect the clearance field.
- Verify copper balance. Export the Gerber for each copper layer, calculate the filled area percentage in a CAM viewer, and ensure the top‑half layers (1‑3) are within 10% of the mirror bottom‑half layers (6‑4).
- Audit via‑in‑pad assignments. Create a report that lists every component pad with a via inside it. For each, verify the fab drawing note explicitly calls out “fill & cap to IPC‑4761 Type VII”.
- Include a layer‑stack table in the fab drawing. A simple graphic with dielectric materials, copper weights, and total thickness removes ambiguity; a verbal description in a read‑me file invites misinterpretation.
Implementing these five checks as a standard gate before an engineering release will catch more than 80% of the issues that typically trigger a fabrication hold or a rejected first‑article lot.
HDI Design Questions Engineers Ask Before Sending Files to Fabrication
Q: What’s the maximum microvia aspect ratio I can rely on in high‑volume production?
A: For laser‑drilled microvias, aim for 0.8:1 to 1:1 depth‑to‑diameter. Exceeding this risks voiding and poor copper plating, especially with standard FR‑4 or low‑loss materials that have lower laser‑ablation rates. Even with a state‑of‑the‑art CO₂ laser, a 100 µm deep via with a 75 µm top opening will show thinning at the bottom corner; that thinning becomes a failure point after 300–500 thermal cycles. If your design forces a deeper blind via, consider a two‑step build (microvia on via) or request a thicker copper fill to compensate.
Q: When should I use filled and capped vias versus tented vias on a 6‑layer HDI board?
A: Via‑in‑pad on fine‑pitch BGAs requires filled and plated‑over (capped) vias to maintain flatness and solderability. The remaining outer‑layer vias that do not fall under a component pad can be tented—mask plugged on both sides—but tenting over a blind hole can trap plating solution residues. In sensitive analog sections (e.g., a 24‑bit ADC front end), even a tented blind via can introduce leakage currents if not baked out thoroughly. For those nodes, filling with a non‑conductive epoxy and capping provides a hermetic seal. A practical rule: every blind via under a BGA ball gets filled and capped; blind vias in open routing areas can be tented if the board wash process is validated for ionic cleanliness.
Q: How do I manage mixed via types (blind, buried, through) in a single design without skyrocketing costs?
A: Limit the number of sequential laminations. Use blind vias from layers 1‑2 and 5‑6, buried vias from 2‑5, and minimize unique drill diameters to reduce tool changes. A single buried‑via drill size of 0.2 mm, one microvia laser diameter of 0.1 mm, and one through‑via drill of 0.3 mm will keep NRE charges in check. Do not create a layer‑3 to layer‑4 blind via unless absolutely necessary—that demands an extra lamination cycle and transforms a Type III build into Type II, increasing board cost by 25–30%. A DFM review from your fabricator early in the design phase can often simplify the via map. Our team at Nova PCBA often suggests grouping all power and ground vias into the through‑hole domain and reserving blind vias exclusively for high‑speed signal escapes, which clears up the via‑type confusion.
Q: What’s the typical cost premium for a 6‑layer HDI stackup versus a standard 6‑layer board?
A: Expect a 20–40% increase depending on the number of lamination cycles and via fill requirements. The premium comes from the laser drilling run, the resin‑aluminum foil press cycle, and the extra plating step for filling. A single‑cycle build (two laser‑drilled foils bonded to a 4‑layer core) will land near the 20% mark; a two‑cycle sequential lamination that adds buried vias between L2‑L3 can push it to 40%. Commodity 6‑layer through‑boards from a high‑volume pool cost around $2.50 per square inch in 2026, while the mapped HDI equivalent runs $3.50–$4.50. The price gap shrinks when you factor in the layer‑count reduction enabled by HDI routing density—a design that would need eight layers in conventional technology often works on six HDI layers, making the total board cost competitive.
Q: Can I reliably place components on both sides with a 6‑layer HDI stackup?
A: Yes, but plan thermal relief, via placement, and reflow profiles carefully. Double‑sided assembly increases the risk of warpage because the board sees two asymmetric heat cycles. Specify a symmetrical stackup with balanced copper distribution to keep the glass‑transition temperature uniformly above the peak reflow temperature. Place heavier components on the bottom side so that the second reflow cycle does not re‑melt the bottom joints; a common strategy is to use a high‑Tg, low‑CTE laminate like IS410 and ensure total thickness is at least 1.0 mm to resist bending. A warp test with an in‑line oven profiler can validate the planarity before committing to volume.
Conclusion
A 6‑layer HDI stackup offers a compelling path to pack more functionality into smaller enclosures without paying the exponential cost of extra sequential laminations. The techniques discussed—adhering to microvia aspect ratio limits, choosing the right via structure for your thermal environment, enforcing DFM guardrails on solder‑mask dams and copper balance, and managing mixed via types—transform a fragile, expensive prototype into a manufacturing‑ready design. When you are ready to move from simulation to physical boards, lean on a partner with proven HDI assembly capability. At Nova PCBA, the same team that performs aggressive DFM analysis can also handle the precision assembly of your double‑sided 6‑layer HDI boards, from micro‑BGA placement to automated optical inspection, ensuring the finished product meets both IPC‑A‑610 class 3 criteria and your time‑to‑market goals.
